8025 New Product LED Waterproof batten

This Waterproof batten The body is made of High quality opal PC/ grey PC Integrated extrusion with novel and beautiful appearance.

superior weather protection IP65 with impact resistance IK08; Vandal resistance screw include Large terminal block (connector) for through wiring (PA16H)

Long life energy SMD with constant current High luminous efficiency, low power consumption

Quick and easy installation (side & rear cable entry), no dark area, no noise

This product includes 3 sizes, including 610mm、1210mm、1510mm

Common parameters :

EWS-8025-60

EWS-8025-120

EWS-8025-150

Input Voltage(AC)

220-240

220-240

220-240

Frequency(Hz)

50/60

50/60

50/60

Power(W)

18

36

52

Luminous Flux(Lm)

2200

4400

6240

Luminous Efficiency(Lm/W)

120

120

120

CCT(K)

3000-6500

3000-6500

3000-6500

Beam Angle

120°

120°

120°

CRI

>80

>80

>80

Dimmable

No

No

No

Surronding Temperature

-20°C~40°C

-20°C~40°C

-20°C~40°C

Energy Efficiency

A+

A+

A+

IP Rate

IP65

IP65

IP65

Size(mm)

610*63*75

1210*63*75

1510*63*75

Certification

CE/ RoHS

CE/ RoHS

CE/ RoHS

Adjustable angle

No

Installation

Surface mounted/Hanging

Material

Cover: Opal PC
Base:PC

Gurantee

3 Years



Applications:

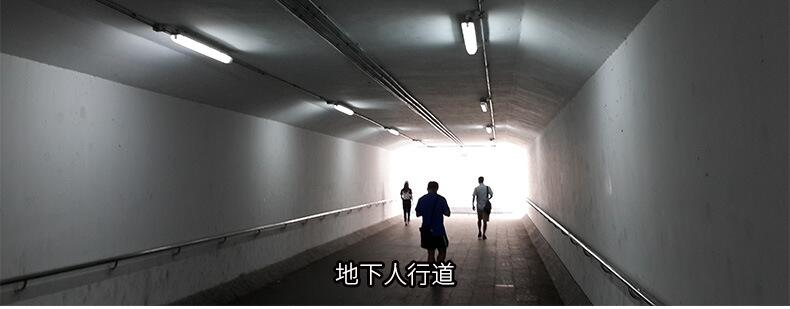

Waterproof lighting fixture for car parking lot ,supermarket, shopping mall, restaurant, school,hospital, warehouse,corridors and other public places

21.8.2

Operating in good faith, innovative refinement business philosophy, to meet customer demand under the premise of providing customers with the most cost-effective products. In addition to providing standardized LED waterproof lighting fixture、dustproof fittingT8 batten lighting fixtureLED Louver fitting, at the same time in accordance with customer demand for customized Different types of LED products and the power (W), luminous flux (LM), CCT (k), CRI, dimmable, warranty and of LED products to meet the individual needs of customers. 90% of the company's products for exports, by Europe and the United States, the Middle East customers welcome customers in more than countries and regions.

  We will become your first choice because of the most excellent quality, the most favorable price, and the perfect after-sale service. We always pursue value concept of "integrity, responsibility, win-win". We sincerely expect all clients come to our factory for inspection visit ,guidance and cooperation.
