8022 Integrated LED Waterproof Fitting

  • Price Term: FOB Ningbo/CIF/CNF
  • MOQ: 500PCS
  • Payment Terms: T/T
  • Product Detail

    Product Tags

    Adhering to the principle that "quality is the life of an enterprise, and promises remain unchanged", we have won a high reputation for China's three proofing lamps and lanterns. Our products can meet your different customization needs. Choosing us is your right choice!


    Economical integrated design, Delicate design without any clips,smoth linearity with easy installation;

    High qualityopal PC body and end cap offering IP65 protection against moisture, dust, corrosion and impact rating of IK08;

    Long life energy SMD with constant current driver or linearity;

    High luminous effcency,low power consumption


    EWS-8022-60 EWS-8022-120
    Input Voltage(AC) 220-240 220-240
    Frequency(Hz) 50/60 50/60
    Power(W) 18 36
    Luminous Flux(Lm) 1800 3600
    Luminous Efficiency(Lm/W) 100 100
    CCT(K) 3000-6500 3000-6500
    Beam Angle 120° 120°
    CRI >80 >80
    Dimmable No No
    Surronding Temperature -20°C~40°C -20°C~40°C
    Energy Efficiency A+ A+
    IP Rate IP65 IP65
    Sizemm 690*53*35 1290*53*35
    N.W.Kg 0.19 0.31
    Adjustable angle No
    Installation Surface mounted/Hanging
    Material Cover: Opal PC
    Gurantee 2 Years

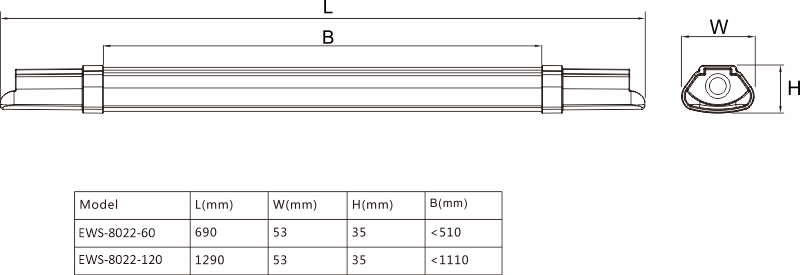

    3.2 EWS-8022 size

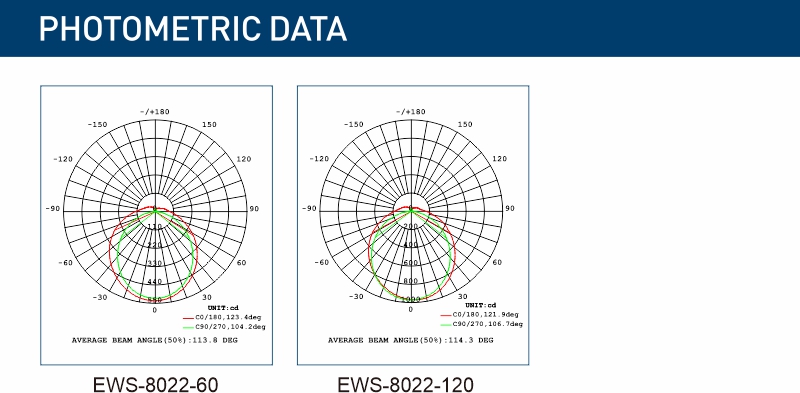

    3.2 EWS-8022 photometric data

    Optional Accessories

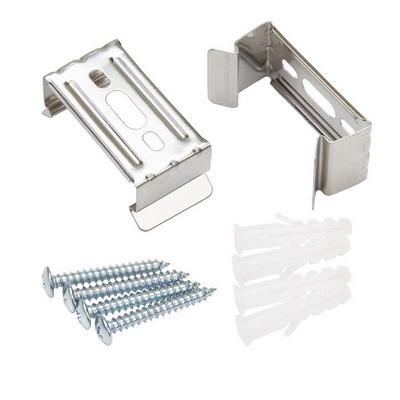

    3.2 EWS-8022 accessories

    Application Scenarios

    Lighting for supermarket, shopping mall, restaurant, school,hospital, parking lot,warehouse,corridors and other public places

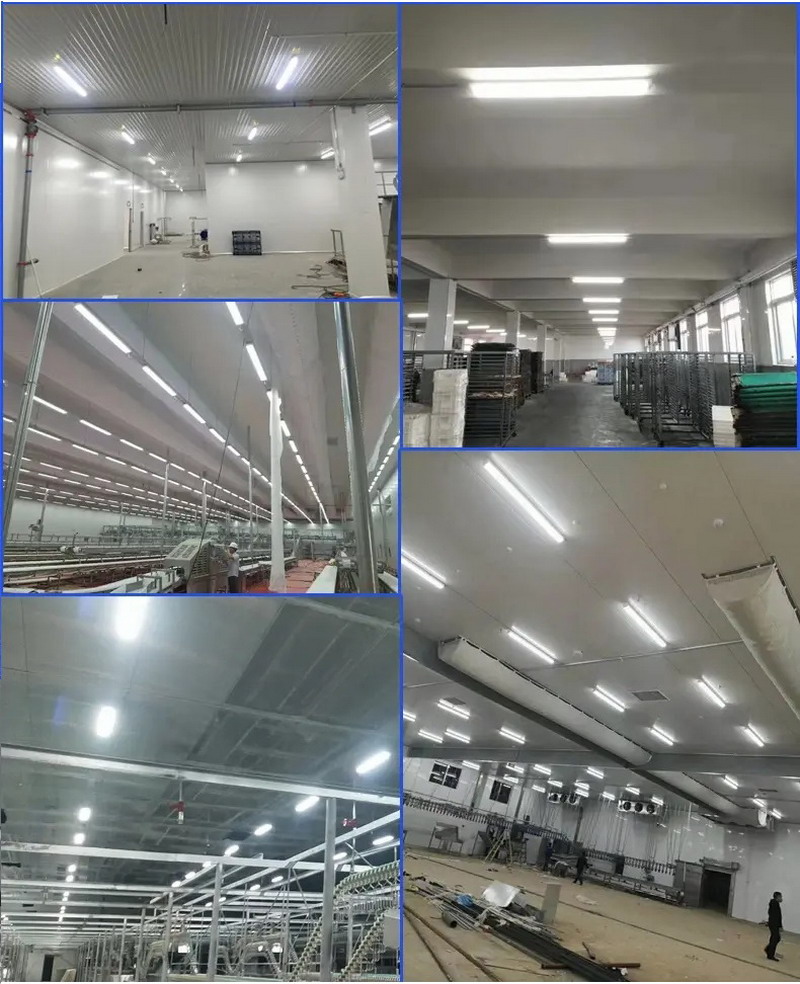

    8022 Application Scenarios
