23W 2000Lm IP65 Waterproof Outdoor Led Emergency Light



  • Price Term: FOB Ningbo/CIF/CNF
  • MOQ: 500PCS
  • Payment Terms: T/T
  • Product Detail

    Product Tags


    23W 2000Lm IP65 Waterproof Outdoor Led Emergency Light

    High quality opal PC cover and PC/ABS base offering IP65 protection against moisture, dust, corrosion and impact rating of IK08;

    Long life energy SMD with constant current driver or linearity;
    High luminous efficency, low power consumption;
    Simple installation, no dark area, no noise.
    Automatic dimmable control with Daylight sensor
    Simple and accurate setting via DIP switch
    Mini size particularly suitable for LED driver with 12VDC auxiliary output


      EWS-218F-EM EWS-136F-EM EWS-236F-EM EWS-158F-EM EWS-258F-EM
    Input Voltage(AC) 220-240  220-240  220-240  220-240  220-240
    Frequency(Hz) 50/60 50/60 50/60 50/60 50/60
    Power(W) 22 22 42 32 62
    Luminous Flux(Lm) 2000 2000 4000 3000 6000
    Luminous Efficiency(Lm/W) 100 100 100 100 100
    CCT(K) 3000-6500 3000-6500 3000-6500 3000-6500 3000-6500
    Beam Angle 120°  120°  120°  120°  120°
    CRI >80 >80 >80 >80 >80
    Dimmable non-dimmable non-dimmable non-dimmable non-dimmable non-dimmable
    Surronding Temperature -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C
    Energy Efficiency A+ A+ A+ A+ A+
    IP Rate IP65 IP65 IP65 IP65 IP65

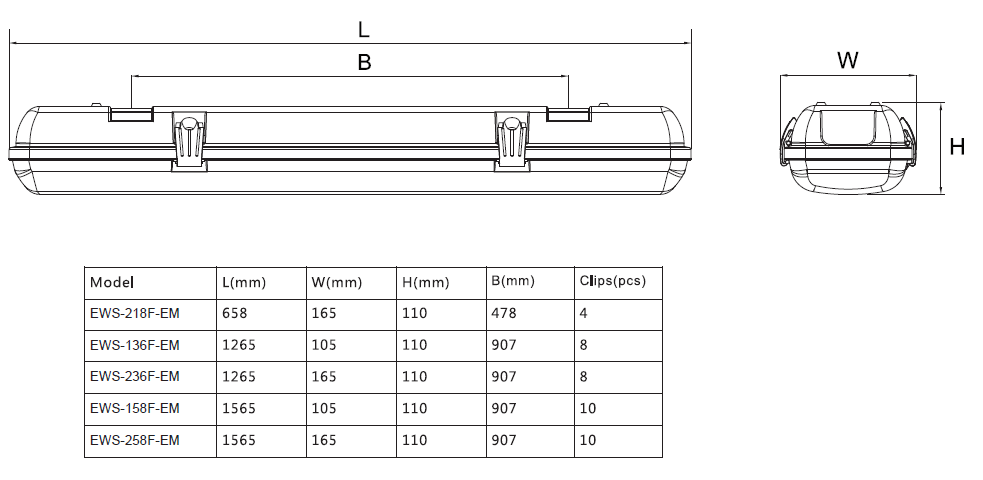

    Size(mm) 655*165*110 1265*105*110 1265*165*110 1565*105*110 1565*165*110
    N.W.(Kg) 1.6kg 1.9kg 2.6kg 2.1kg 2.9kg
    Certification CE/ RoHS CE/ RoHS CE/ RoHS CE/ RoHS CE/ RoHS
    Emergency  2.5W, 3H 2.5W, 3H 2.5W, 3H 2.5W, 3H 2.5W, 3H



    Optional Accessories:


     Application Scenarios

    Lighting for supermarket, shopping mall, restaurant, school,hospital, parking lot,warehouse,corridors and other public places


    Company information:

    Jiatong factory was established in 2004 and located in Longshan Town, Cixi City, Zhejiang, China, near to Ningbo
    port. It covers an area of 30,000 m2, and has 350 employees. We are professional lighting appliance
    manufacturer focusing on research, development and innovation of various lighting products, technologies
    and solutions, and is equipped with an integrated production capacity for design & development,
    parts processing, product assembly and etc.
    Relying on the favorable advantage of industrial cluster, and excellent management concept and
    mode of supply chain, a leading cost advantage has been created in the industry.











    Our Service  :

    Before sale service

    1.Your inquiry will be promptly replied within 24 hours

    2.Well-trained and experienced staffs will answer your questions in fluent English

    3.OEM&ODM welcomed

    4.Free design according to customer's demand


    After sale service

    1.We promise 50000H 3 years warranty for our LED tube.

    2.Any defective products within warranty will get maintenance or replacement unconditionally

    3.Protection of your sales area,ideas of design and all your private information

    Why choose LED from Jiatong ?

    ♥ Our service

       1.OEM & ODM are offered.
       2.8 more R&D engineer.All your questions will be replied in 24 hours.

       3.Distributorship is offered for your unique design and some our currect models.
       4.Protection of your sales area,Ideas of design and all your private information.
       5.If the oder more than 500pcs,we will return back the payment of samples.
    ♥ Reliability   1.As long as 72h aging test with automatic switching before each shipment.
       2.100% vibratility test will make sure the fastness of the assembling.
       3.100% resist voltage test of AC85-305v makes sure those tubes compatible for both 120v 277v.
       4.More than 95% lumen maintenance based on the 6000h LM-80-08 test

       5.-40°C to 50°C(-40°F to 122°F) extreme environment compliant.

    ♥ Trade Terms »  »  »

       - Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.

       - Production lead time for 100~500pcs: 7days, 500~1000pcs:10days

       - Sample can be delivered in 3 days

       - Shipping port: Ningbo/Shanghai



    1.Q: Are you a factory or trading company?
     A: professional LED lighting products factory,Special for LED Waterproof Fitting Light


    2.Q: Why should I buy led light from Jiatong ?
       A: We are manufacturer of best quality Waterproof Fitting Light,do the business more than 15 years.

    We are the most skillful manufacturer in this fields of led lights. And we have more experiences for making advanced led.


    3.Q: How about the warranty?

     A: Every product is covered by our full replacement warranty.

    Many of our products are also eligible for an extended warranty with our company's approved.


    4 Q:How can I get some samples?
    A:1,Samples are basic for our future long-term cooperation.
       2,Regarding the samples cost & courier cost: You could pay by Paypal, T/T, western
       union,we will arrange Fedex, UPS to send out for your in a week.
