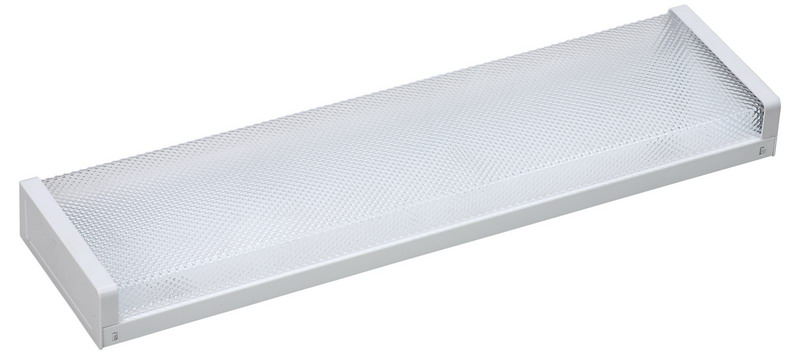

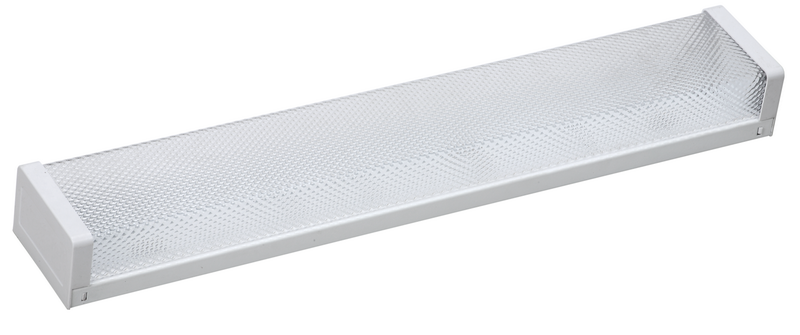

EDT LED dustproof batten fitting
LED dustproof batten fitting lamp shade can be knurled, opal or transparent. There are several sizes to choose from. The lamp power and color temperature can also be customized. The same product can also be pasted to meet the requirements of various certification and customer standards. Welcome to choose
Description
LED Grille Louver Fitting Have Innovative prism cover and steel base. High quality LED tube. High luminous efficency and low power consumption. Simple installation, no dark area,no noise
Specification
| EDT-60S | EDT-60D | EDT-120S | EDT-120D | |
| Input Voltage(AC) | 220-240 | 220-240 | 220-240 | 220-240 |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Power(W) | 10 | 20 | 20 | 40 |
| Luminous Flux(Lm) | 1000 | 2000 | 2000 | 4000 |
| Luminous Efficiency(Lm/W) | 100 | 100 | 100 | 100 |
| CCT(K) | 3000-6500 | 3000-6500 | 3000-6500 | 3000-6500 |
| Beam Angle | 120° | 120° | 120° | 120° |
| CRI | >70 | >70 | >70 | >70 |
| Dimmable | No | No | No | No |
| Surronding Temperature | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C |
| Energy Efficiency | A+ | A+ | A+ | A+ |
| IP Rate | IP20 | IP20 | IP20 | IP20 |
| Size（mm） | 630*102*65 | 630*165*60 | 1240*102*65 | 1240*165*60 |
| N.W.（Kg） | 0.74 | 1.18 | 1.28 | 1.8 |
| Installation | Surface mounted | |||
| Material | Cover: Prism PS Base: Steel |
|||
| Gurantee | 2Years / 3Years | |||

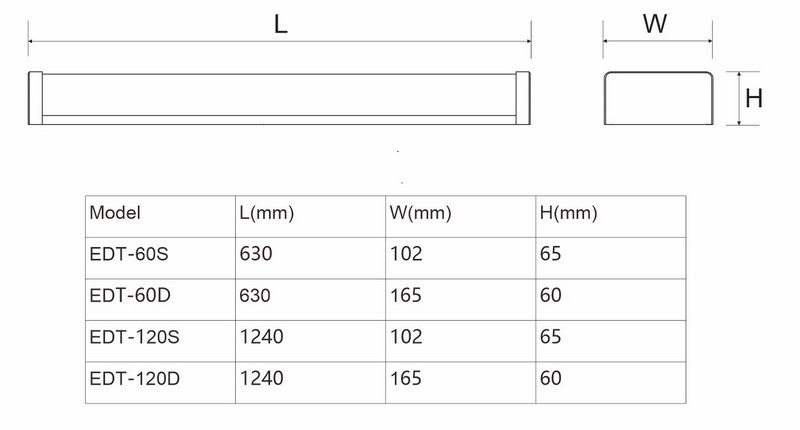

Size

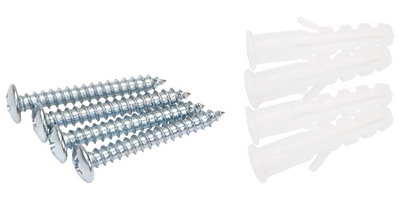

Optional Accessories

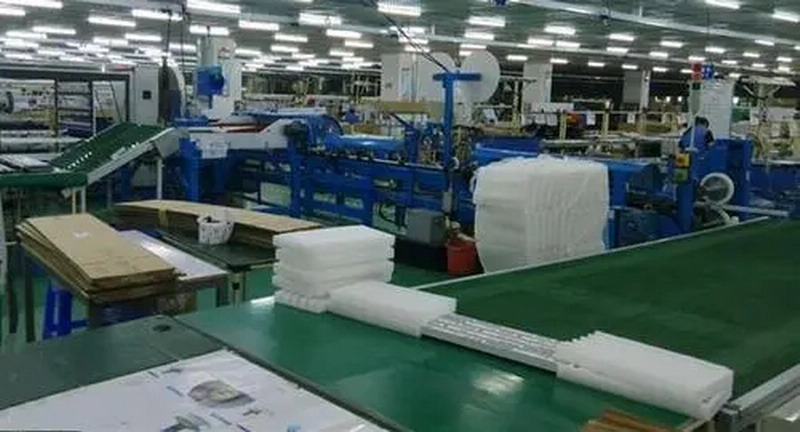

Application Scenarios
LED Louver Fitting for for supermarket, shopping mall, restaurant, school,hospital, parking lot,warehouse,corridors and other public places
