BH-P series IP65 LED Emergency Bulkhead

  • Price Term: FOB Ningbo/CIF/CNF
  • MOQ: 500PCS
  • Payment Terms: T/T
  • Product Detail

    Product Tags

    We always hope and are willing to be your most reliable


    Maintained and non-maintained mode.Quick installation.SelfTest function available. Ultra slim design, decent, elegant and nice decorative. Cover and Base: PC.Instant light;No flickering.High performance LEDs. low power consumption. high brightness.Extra long life;Free from toxic chemicals.No UV emissions. Optional interchangeable legends:Suitable for wall/ceiling mounting.


    Supplier Product code BH-P-L BH-P-N
    Input Voltage 220-240 V/AC 220-240 V/AC
    Frequency 50/60HZ 50/60HZ
    Input Wattage 5W 5W
    Power Factor 0.45 0.45
    Maintained and Non-maintained Maintained / Non-maintained Maintained / Non-maintained
    Charge time 24hrs 24hrs
    Selftest No No
    LED Type 2835 2835
    Lumen Output 600Lm 600Lm
    Emergency Lumen Output 300Lm 250Lm
    Ra 80 80
    Colour Temperature 6500K 6500K
    Battery pack LiFePO4 3.2V,3300mAh Ni-Cd 3.6V,2000mAh
    Battery cell brand BST Dison
    Charge current 50mA max 50mA max
    Charge protection voltage 3.9V 4.2V
    Discharge time >3hours >3hours
    Deep discharge protection 2.5V 3V
    Guarantee 5 years (battery 3years) 5 years (battery 3years)
    Life Expectancy 50000h 50000h
    Working Temperature  0 to +45℃  0 to +45℃
    IP Rating IP65 IP65
    IK Rating IK08 IK08
    Surge protection level L-N 1000V L-N 1000V
    Product Class CLASS II CLASS II

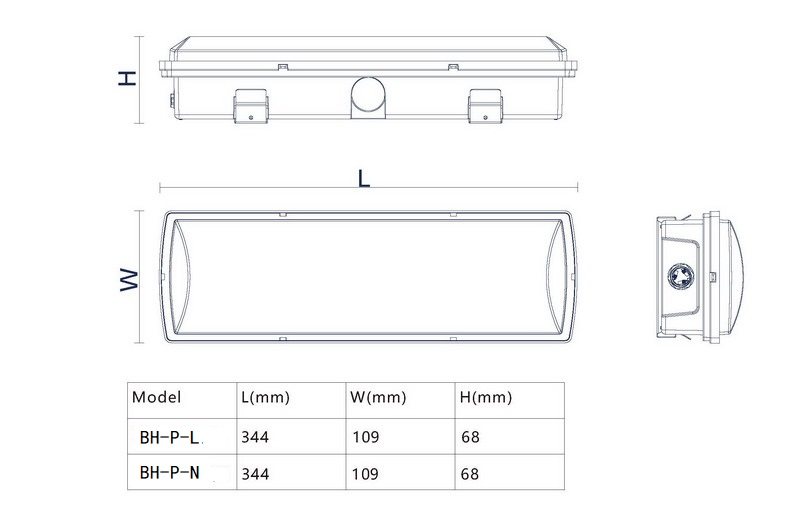

    13.1 VBK size-TYPE



    Optional Accessories


    Application Scenarios

    IP20 LED Mirror light fixture for supermarket, shopping mall, restaurant, school,hospital, parking lot,warehouse,corridors and other public places
