EPSB Surface mount LED Emergency Panel with Back Light
Decent design，Back light，no lightleak,，no shado，High performance LEDs，low power，Consumption，high brightness，Easy for installation，No flickering，Extra long life，Free from toxic chemicals，No UV emissions
Specification
| EPSB-3060SO-EM | EPSB-6060SO-EM | EPSB-30120SO-EM | EPSB-3060SP-EM | EPSB-6060SP-EM | EPSB-30120SP-EM | |
| Input Voltage(AC) | 220-240 | 220-240 | 220-240 | 220-240 | 220-240 | 220-240 |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Power(W) | 20 | 40 | 40 | 20 | 40 | 40 |
| Luminous Flux(Lm) | 1800 | 3600 | 3600 | 1800 | 3600 | 3600 |
| Luminous Efficiency(Lm/W) | 90 | 90 | 90 | 90 | 90 | 90 |
| Emergency Power(W) | 2 | 2 | 2 | 2 | 2 | 2 |
| Emergency Luminous | 220 | 220 | 220 | 220 | 220 | 220 |
| Emergency duration | 3 hours | 3 hours | 3 hours | 3 hours | 3 hours | |
| CCT(K) | 3000-6500 | 3000-6500 | 3000-6500 | 3000-6500 | 3000-6500 | 3000-6500 |
| Beam Angle | 120° | 120° | 120° | 90° | 90° | 90° |
| CRI | >80 | >80 | >80 | >80 | >80 | >80 |
| Dimmable | non-dimmable | non-dimmable | non-dimmable | non-dimmable | non-dimmable | non-dimmable |
| Surronding Temperature | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C |
| Energy Efficiency | A+ | A+ | A+ | A+ | A+ | A+ |
| IP Rate | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Size（mm） | 295*595*45 | 595*595*45 | 295*1195*45 | 295*595*45 | 595*595*45 | 295*1195*45 |
| N.W.（Kg） | 1.5 | 3 | 3 | 1.5 | 3 | 3 |
| Certification | CE/ RoHS | CE/ RoHS | CE/ RoHS | CE/ RoHS | CE/ RoHS | CE/ RoHS |
| Adjustable angle | No | |||||
| Installation | Surface mount | |||||
| Material | Cover: PP/PS Base: Iron plate |
|||||
| Gurantee | 3 Years /5 Years | |||||

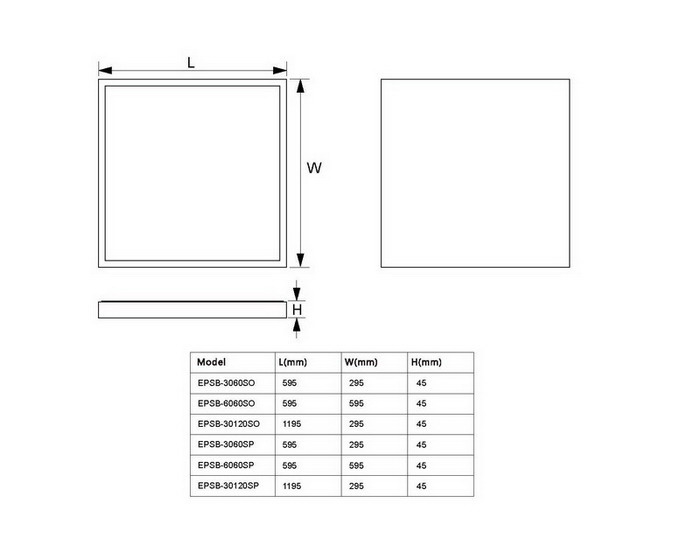

Size

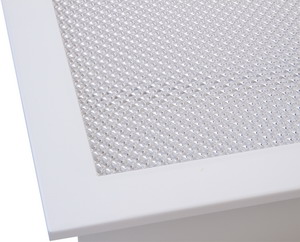

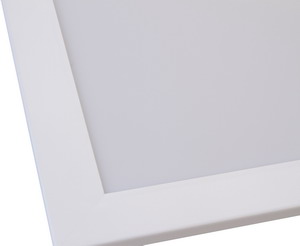

Optional Accessories
Application Scenarios
LED Emergency Panel for supermarket, shopping mall, restaurant, school,hospital, parking lot,warehouse,corridors and other public places
