13150 Surface mount LED Louver Fitting

Product Detail

Product Tags

Professional production, shell color, size, lamp bead color temperature, luminous flux, product power, etc. can be customized.


 Parabola design supply good reflecting effect. High performance LEDs. low power consumption. high brightness. Ultra slim design. Easy for installation. No flickering. Extra long life. Free from toxic chemicals. No UV emissions. Mirror aluminum V-shaped grille (ordinary).

Go to Germany to comply with RoHS and new ERP


Input Voltage(AC) 220-240
Frequency(Hz) 50/60
Power(W) 25
Luminous Flux(Lm) 2250
Luminous Efficiency(Lm/W) 90
CCT(K) 3000-6500
Beam Angle 75°
CRI >80
Dimmable No
Surronding Temperature -20°C~40°C
Energy Efficiency A
IP Rate IP20
Sizemm 130*1495*40
N.W.Kg 1.95
Certification CE/ RoHS
Adjustable angle No
Installation Surface mount
Material Cover: Aluminum grille
Base: Steel
Gurantee 3 Years

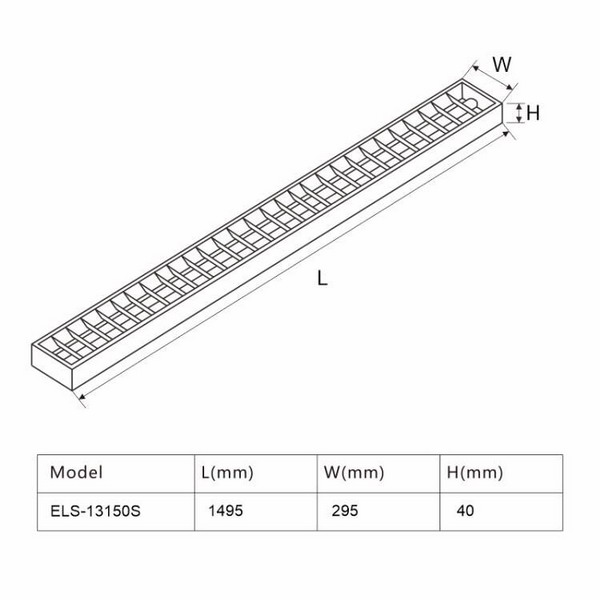

ELS-13150-S SIZE

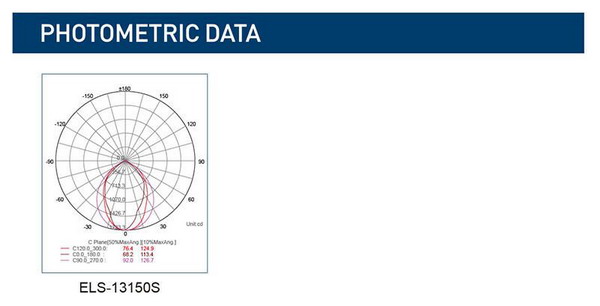

ELS-13150-S photometric data

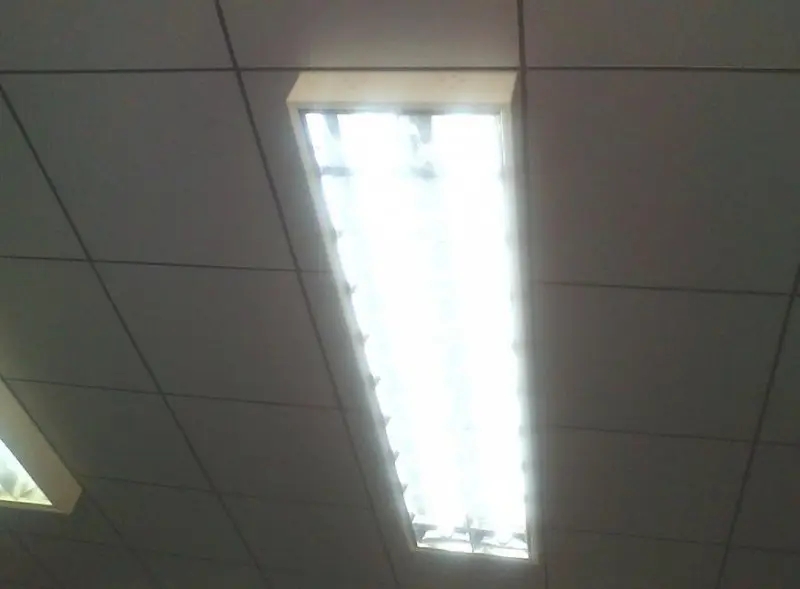

Application Scenarios

13150 Surface mount LED Louver Fitting for supermarket, shopping mall, restaurant, school,hospital, parking lot,warehouse,corridors and other public places

Application scenarios 53
