F Series Waterproof Fitting with Ballast


  • Price Term: FOB Ningbo/CIF/CNF
  • MOQ: 500PCS
  • Payment Terms: T/T
  • Product Detail

    Product Tags

     Description

    Long life electronic or magnetic ballast for fluorescent tube;

    High luminous effcency,low power consumption;

    Innovative design,simple installation; IP65 protection

    Specification

      F118 F218 F136 F236 F158 F258
    Input Voltage(VAC) 220-240 220-240 220-240 220-240 220-240 220-240
    Frequency(Hz) 50/60 50/60 50/60 50/60 50/60 50/60
    Power(W) 18 36 36 72 58 116
    Luminous Flux -- -- -- -- -- --
    Luminous Efficiency -- -- -- -- -- --
    CCT -- -- -- -- -- --
    Beam Angle -- -- -- -- -- --
    CRI -- -- -- -- -- --
    Dimmable No No No No No No
    Surrounding Temperature -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C
    Energy Efficiency  -- -- -- -- -- --
    IP Rate IP65 IP65 IP65 IP65 IP65 IP65
    Size(mm) 655*105*110 655*165*110 1265*105*110 1265*165*110 1565*105*110 1565*165*110
    N.W.(Kg) 1.4 1.9 2 3.4 2.8 4.4
    Certification CE/ RoHS CE/ RoHS CE/ RoHS CE/ RoHS CE/ RoHS CE/ RoHS
    Adjustable angle No
    Installation Surface mounted/Hanging
    Material Cover: Transparent PC/PS
    Base:PC/ABS
    Guarantee 2 Years

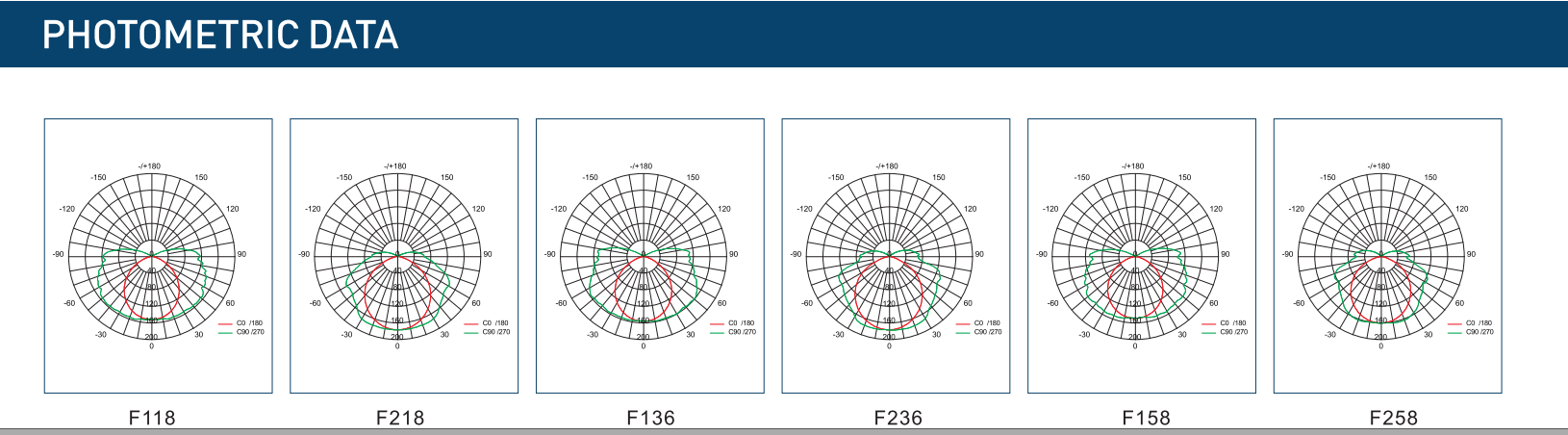

    QQ截图20170809114233QQ截图20170809114201

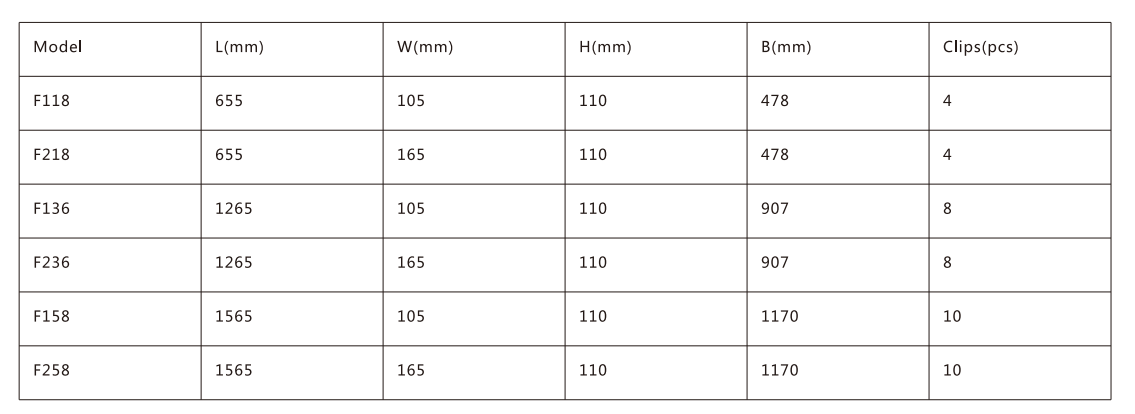

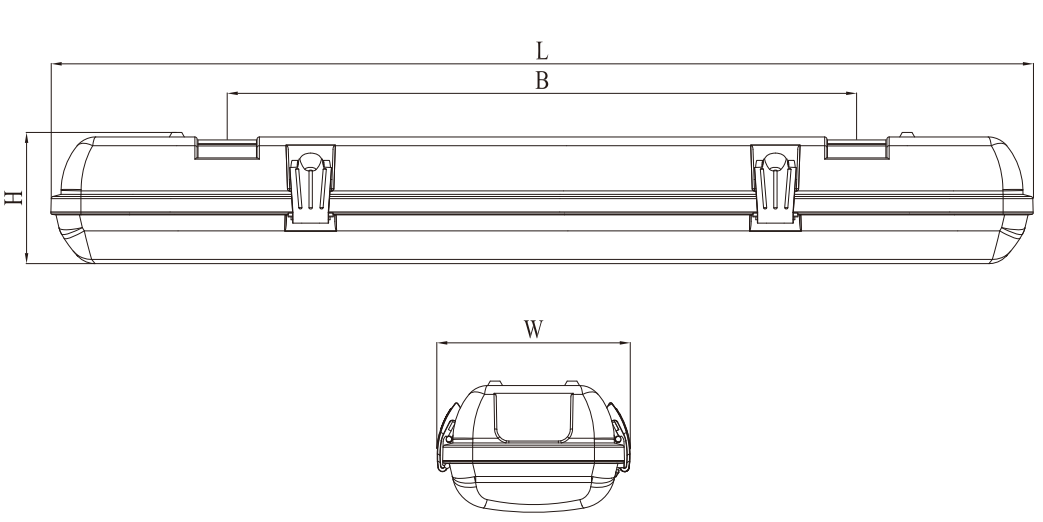

    Size

    QQ截图20170809114319

     Optional Accessories



    Micro wave motion sensor11



    Application Scenarios

    Lingting for supermarket, shopping mall, restaurant, school,hospital, parking lot,warehouse,corridors and other public places

    1

     Company information:

    Jiatong factory was established in 2004 and located in Longshan Town, Cixi City, Zhejiang, China, near to Ningboport. It covers an area of 30,000 m2, and has 350 employees. We are professional lighting appliancemanufacturer focusing on research, development and innovation of various lighting products, technologiesand solutions, and is equipped with an integrated production capacity for design & development,parts processing, product assembly and etc.Relying on the favorable advantage of industrial cluster, and excellent management concept andmode of supply chain, a leading cost advantage has been created in the industry.

    3

    Inspect                                                                                                                                 2

     Certificate:                                                                                                                                                                                                     4

     Delivery                                                                                                                                                                                                                   4567

     Our Service  :

    Before sale service

     1.Your inquiry will be promptly replied within 24 hours

     2.Well-trained and experienced staffs will answer your questions in fluent English

     3.OEM&ODM welcomed

     4.Free design according to customer’s demand

     After sale service

     1.We promise 50000H 3 years warranty for our LED tube.

     2.Any defective products within warranty will get maintenance or replacement unconditionally

     3.Protection of your sales area,ideas of design and all your private information

     Why choose LED from Jiatong ?

    ♥ Our service

       1.OEM & ODM are offered.

       2.8 more R&D engineer.All your questions will be replied in 24 hours.

      3.Distributorship is offered for your unique design and some our currect models.

       4.Protection of your sales area,Ideas of design and all your private information.
       5.If the oder more than 500pcs,we will return back the payment of samples.
    ♥ Reliability   1.As long as 72h aging test with automatic switching before each shipment.
       2.100% vibratility test will make sure the fastness of the assembling.
       3.100% resist voltage test of AC85-305v makes sure those tubes compatible for both 120v 277v.
      4.More than 95% lumen maintenance based on the 6000h LM-80-08 test
      5.-40°C to 50°C(-40°F to 122°F) extreme environment compliant.
    ♥ Trade Terms »  »  »
     - Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.
     - Production lead time for 100~500pcs: 7days, 500~1000pcs:10days
     - Sample can be delivered in 3 days
     - Shipping port: Ningbo/Shanghai

    6532



    FAQ:                                                                                                                                                                                                                                                                                1.Q: Are you a factory or trading company?

     A: professional LED lighting products factory,Special for LED Waterproof Fitting

     2.Q: Why should I buy led light from Jiatong ?

     A: We are manufacturer of best quality Waterproof Fitting Light,do the business more than 15 years.

     We are the most skillful manufacturer in this fields of led lights. And we have more experiences for making advanced led.
